Harman/Kardon

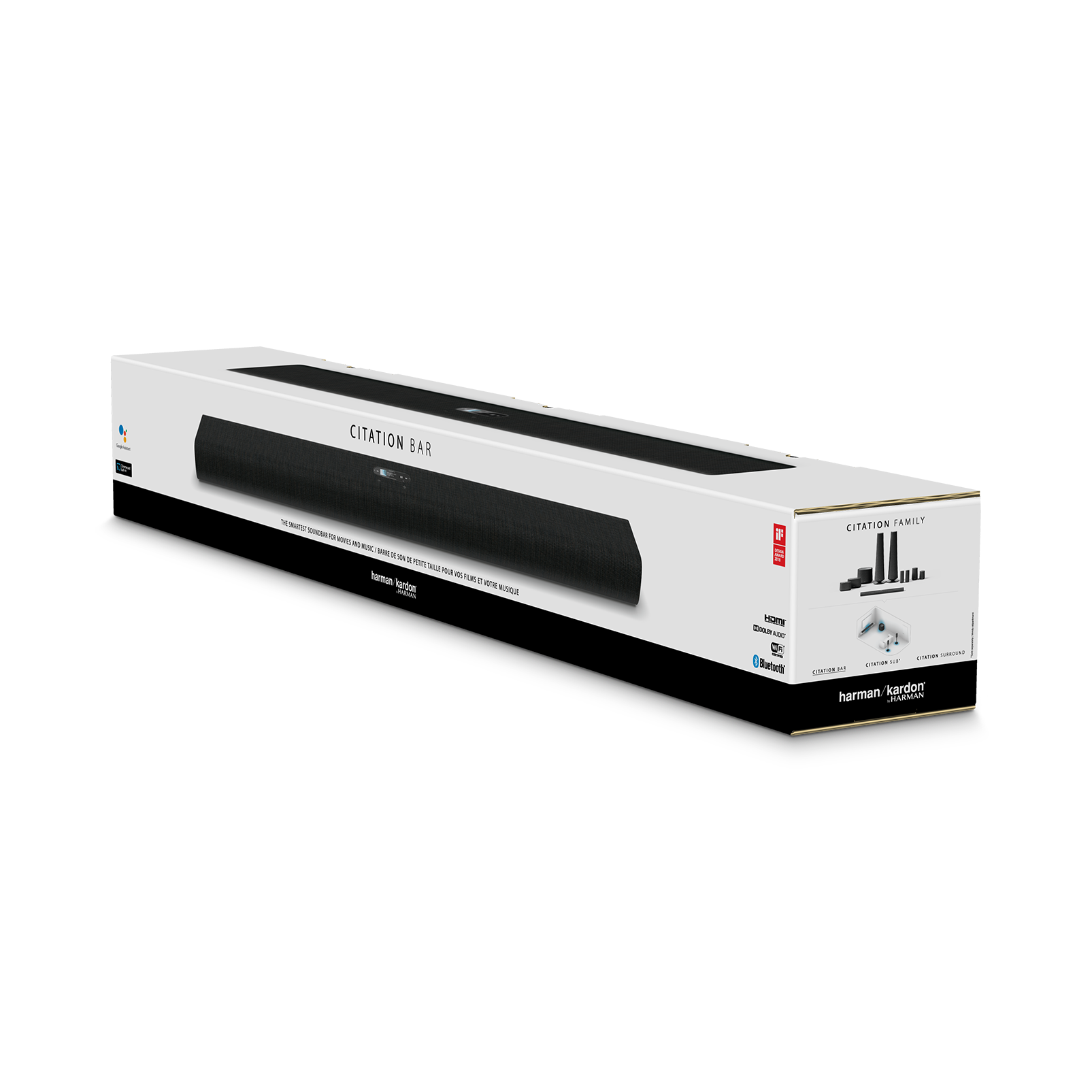

Harman Kardon Citation Bar

Details
Variations

The smartest soundbar for movies and music

£899.99899.99 each
Product Actions
Add to cart options
+

In stock. Estimated delivery time 2-4 business days

Beautiful Sound That Speaks To You

The Harman Kardon Citation Bar is a next generation smart soundbar for movies and music. Easy to use with its full-color LCD touch screen, Citation Bar blends innovation in home audio with attention to detail in design, allowing for sophisticated looks and superb bass without a subwoofer. Music lovers will love access to over 300 music services and high-definition streaming through Chromecast built-in, while movie lovers enjoy their all wireless 5.1 home theater system with Citation Surround and Citation Sub. The Google Assistant brings convenient voice control to your Citation Bar when listening to music for hands-free help around the home. Get answers, play music, organize your day, control your smart home, enjoy your entertainment and more, just with your voice!

Item# HKCITATIONBARBLKEU

General Specifications

Model Name Citation Bar
Power Supply 100-240V~50/60Hz
Power consumption in sleep mode <2.0 Watts
Wireless network 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range 2412 – 2472MHz (2.4GHzISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power <20dBm
2.4G Wi-Fi modulation DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi transmitter power <23dBm
5G Wi-Fi modulation QPSK, BPSK, 16QAM, 64QAM, 256QAM
5G Wi-Fi transmitter frequency range 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
Note CITATION BAR is intended to be used for streaming music. A consumer can stream Bluetooth audio to the speaker. A consumer can connect their speaker to the localWi-Fi Network and stream music with Google Chromecast. In addition, the speaker will work with Google Home. This product is designed to be instantly on and ready to play music at a moment's notice, therefore, the Bluetooth andWi-Fi connection must remain active at all times to ensure proper operation. CITATION BAR is in compliance with the European Union energy legislation. CITATION BAR will enter into sleep mode (networked standby) after 20 minutes without operation, after which it can be re-activated via Bluetooth or Wi-Fi.

Audio Specifications

Signal-to-noise ratio >80dB
Output power 150W RMS
Transducer 3 x 20mm tweeter, 6 x (100 x 50) racetrack woofer

Dimensions

Dimensions (W x H x D) 1150 x 64 x 115mm (45” x 2.4” x 4.5”)
Weight 4.1kg (9lb)

Control and Connection Specifications

Bluetooth® version 4.3
Bluetooth transmitter frequency range 2402 – 2480MHz
Bluetooth transmitter power <10dBm
Bluetooth transmitter modulation GFSK,π/4 DQPSK, 8DPSK
  • 1 x Citation Bar
  • 1 x Quick-start guide
  • 1 x Warranty sheet
  • 1 x Safety sheet
  • 1 x power cable (1.8m)
{"searchRecords":[{"attributes":{"type":"FAQ__kav","url":"/services/data/v43.0/sobjects/FAQ__kav/ka01Y000000oV9aQAE"},"Title":"HK CITATION: Controlling IOT devices","Id":"ka01Y000000oV9aQAE","ArticleNumber":"000008329","ArticleType":"FAQ__kav","Question__c":"Can I control iOT devices with my Citation speaker?","Answer__c":"Citation will work with any smart home or iOT device labeled Works with Google Assistant.\r\n\r\n\r\nVisit http://assistant.google.com to learn more."},{"attributes":{"type":"FAQ__kav","url":"/services/data/v43.0/sobjects/FAQ__kav/ka01Y000000oV8SQAU"},"Title":"HK Citation: Recording conversation","Id":"ka01Y000000oV8SQAU","ArticleNumber":"000008180","ArticleType":"FAQ__kav","Question__c":"Does the Citation speaker record all my conversations?","Answer__c":"No, the Citation speaker does not store any conversations, it listens only for a few seconds and then deletes the file. Only when using \"OK, Google\" or \"Hey, Google\" will it start recording your question in order for Google Assistant to fulfill your request. You can always delete all your recordings via \"My activity\" settings under your Google Account."},{"attributes":{"type":"FAQ__kav","url":"/services/data/v43.0/sobjects/FAQ__kav/ka01Y000000oV9GQAU"},"Title":"HK CITATION: Resetting speakers","Id":"ka01Y000000oV9GQAU","ArticleNumber":"000008325","ArticleType":"FAQ__kav","Question__c":"How can I factory reset my Citation device?","Answer__c":"For Citation ONE, Citation 100, Citation Sub and Citation Surround, Press and hold the RESET button on the speaker for 5 seconds.\r\n\r\nFor Citation 300, Citation 500, Citation Bar and Citation Tower, Press and hold the RESET button on the speaker for 5 seconds, or select the Factory Reset option in the touch screen settings menu."},{"attributes":{"type":"FAQ__kav","url":"/services/data/v43.0/sobjects/FAQ__kav/ka01Y000000oV8hQAE"},"Title":"HK CITATION: Removing Towers from Surround setup","Id":"ka01Y000000oV8hQAE","ArticleNumber":"000008322","ArticleType":"FAQ__kav","Question__c":"How to remove Citation Towers from a Surround setup and reinstalling them again?","Answer__c":"Perform a factory reset on the Citation Tower speakers by pressing and holding the reset button on the back panel for 5 seconds.\r\nAfter the reset you can now select \"Music\" to set up the Tower speakers to your WiFi network."},{"attributes":{"type":"FAQ__kav","url":"/services/data/v43.0/sobjects/FAQ__kav/ka01Y000000oV88QAE"},"Title":"HK Citation: BAR not responding to voice","Id":"ka01Y000000oV88QAE","ArticleNumber":"000008181","ArticleType":"FAQ__kav","Question__c":"I am using AUX-in, Optical, or HDMI with my Citation Bar, and Google Voice Assistant does not respond. How can I use Google Voice Assistant?","Answer__c":"Use the Google Voice Assistant button on your Citation Bar remote control when using these inputs HDMI, AUX or Optical. When you press this button, the current volume level will temporarily decrease and the Google Voice Assistant will begin listening for your command. \r\nThe reason you need to use the remote control is that Google Assistant does not support Multi-channel audio from your source device (TV, BlueRay Player or TV-BOX) and therefore the mic is automatically muted unless the Google Voice Assistant button is pressed.\r\nThis may be different in the future with new software updates.\r\n\r\nGoogle Voice Assistant is always listening when streaming music over Wi-Fi or Bluetooth."},{"attributes":{"type":"FAQ__kav","url":"/services/data/v43.0/sobjects/FAQ__kav/ka01Y000000oV96QAE"},"Title":"HK CITATION: Low budget Android phones","Id":"ka01Y000000oV96QAE","ArticleNumber":"000008324","ArticleType":"FAQ__kav","Question__c":"I am using an Android phone and cannot set up my Citation speaker","Answer__c":"Please try turning Bluetooth off on your phone and trying again, and make sure Location services are enabled for the Google Home app.\r\n\r\nIf this does not work, certain phones are not compatible with the Google Home setup process, including the Vivo X21A, Vivo NEX S, and Vivo X9. Please use a different device for setup."},{"attributes":{"type":"FAQ__kav","url":"/services/data/v43.0/sobjects/FAQ__kav/ka01Y000000oV9QQAU"},"Title":"HK CITATION: Using Google Voice in Surround systems","Id":"ka01Y000000oV9QQAU","ArticleNumber":"000008327","ArticleType":"FAQ__kav","Question__c":"I have a Surround sound system with other Citation speakers. How can I use Google Voice Assistant?","Answer__c":"Use the Google Voice Assistant button on your Citation Bar remote control when using these inputs. When you press this button, the current volume level will temporarily decrease and the Google Voice Assistant will begin listening for your command. \r\n\r\nIf you wish to use Google Voice Assistant with the wake-up word when steaming music over Wi-Fi or Bluetooth in a 5.1 surround sound system, turn off the Surround setting on the Citation Bar touch screen."},{"attributes":{"type":"FAQ__kav","url":"/services/data/v43.0/sobjects/FAQ__kav/ka01Y000000oV8wQAE"},"Title":"HK CITATION: WiFi out of range","Id":"ka01Y000000oV8wQAE","ArticleNumber":"000008323","ArticleType":"FAQ__kav","Question__c":"My Citation speaker said it needs to be set up, but I have already set it up and it was working previously.","Answer__c":"Make sure your home network's Internet connection is active and the Citation speaker is placed within Wi-Fi range.\r\n\r\nIf you are using a Wi-Fi extender, your speaker may be confused which network to connect to. If this is happening, try moving the speaker closer to the main router and renaming the Wi-Fi extender."},{"attributes":{"type":"FAQ__kav","url":"/services/data/v43.0/sobjects/FAQ__kav/ka01Y000000oV8IQAU"},"Title":"HK Citation: 4 Amber LEDS","Id":"ka01Y000000oV8IQAU","ArticleNumber":"000008179","ArticleType":"FAQ__kav","Question__c":"The 4 LED dots change to amber on my Citation speaker. What does this mean?","Answer__c":"The amber LED lights indicate that the microphone is muted and the Google Assistant will not react to any voice keywords until the microphone is unmuted."},{"attributes":{"type":"FAQ__kav","url":"/services/data/v43.0/sobjects/FAQ__kav/ka01Y000000oV9VQAU"},"Title":"HK CITATION: Wi-Fi protocol support","Id":"ka01Y000000oV9VQAU","ArticleNumber":"000008328","ArticleType":"FAQ__kav","Question__c":"What Wi-Fi standards are supported for Citation?","Answer__c":"Citation speakers support 802.11g, 802.11n, and 802.11ac standards on both 2.4 GHz and 5 GHz bands. We recommend using 5 GHz if available, as this will give you more stable performance and use the full power of your wireless audio.\r\n\r\nContact our customer support to get in touch with an expert that can help you with your Wi-Fi network. We are here to help!"},{"attributes":{"type":"FAQ__kav","url":"/services/data/v43.0/sobjects/FAQ__kav/ka01Y000000oV9LQAU"},"Title":"HK CITATION: Multiple devices reacting to voice","Id":"ka01Y000000oV9LQAU","ArticleNumber":"000008326","ArticleType":"FAQ__kav","Question__c":"What happens if you have multiple Citation speakers, will all react to \"Hey Google\" or \"OK Google\"?","Answer__c":"All speakers are set to react when you use the keywords to interact with Google. To eliminate multiple speakers talking at the same time, using the \"Microphone Mute\" button will stop the speaker from reacting to the keywords."}]}
Harman Kardon Citation Bar is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Great Upgrade It is amazing how easy it was to set up. Great Sound features. Immediatly worked with my Samsung TV. Cinema Surround experience in my home
Date published: 2019-03-20
Rated 5 out of 5 by from Replacing My Sonos! Replacing my entire Sonos system with Citation. Defiantly a cut above in performance and features. I love using Assistant to get my music running when I get home. Love the style!
Date published: 2019-03-08
Rated 5 out of 5 by from Beautiful design and Look, Great Sound! Awesome, sleek and great sounding bar. Having Google is a game changer, love the feature! Used Google home app to add this to the rest of the Citation family for whole house audio system.
Date published: 2019-02-14
  • y_2019, m_6, d_17, h_23
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_citationbar, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_harmankardon

Which surround formats does the citation bar decode? Can't seem to find that information.Does it (with tower etc.) support HD sound like Dolby TrueHD?

Asked by: Thomsens
At the time, the Citation Bar and Adapt, via HDMI, support: &bull; PCM (stereo and multi-channel) &bull; Dolby Digital 2.0 up to 5.1
Answered by: Mario at Customer Service
Date published: 2019-05-06

When I first set up the Citation surround, there were not orange lights on standby on the citation bar which there are now. Is that normal?

Asked by: Dyverse1
Dear Duverse 1. As your question requires troubleshooting by our Product Specialists, we invite you to contact the Harman Customer Support team by telephone, email or chat in order to receive direct assistance. Please see https://uk.harmanaudio.com/support-contact.html#ns for further details.&nbsp; Thank you.
Answered by: Meriam
Date published: 2019-04-30

How many of the citation speakers can you link to one Citation sound bar? I currently have the sub, the towers, and the surround speakers. Can I add more to it???

Asked by: RyanEBR
Thanks for reaching out, our apologies for the inconvenience and delay in response. I can see that you've already submitted a case with us and is already being handled by one of our Customer Service Representatives. Please reply to their communication if you need anything additional.
Answered by: Jayson D
Date published: 2019-03-03

Does it support Deezer app?

Asked by: mikimali
You can play music from Deezer using the Chromecast Built-in feature.
Answered by: Alfred456
Date published: 2019-02-26

I purchased the Citation soundbar, subwoofer, and surround speakers. The surround speaker only works when I activate the virtual surround mode on the remote, but the owner's manual states otherwise. Also, surround speakers are not that loud. Why?

Asked by: Tom729
We would like to work with you directly to help you with your issue. Please submit a case request at https://www.harmankardon.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
Answered by: Mario at Customer Service
Date published: 2019-02-23

Why does the bar automatically mute the microphone when using input from the TV? It's very annoying having the 4 orange lights on the front and it defeats the purpose of having a soundbar with Google assistant!

Asked by: Jnevk
Thank you for your question. You will have to use the Google Voice Assistant button on your Citation Bar remote control when using HDMI, AUX or Optical. When you press the Google assistant button, the current volume level will temporarily decrease and the Google Voice Assistant will begin listening for your command. The reason you need to use the remote control is that Google Assistant does not support Multi-channel audio from your source device (TV, Blue-ray Player or TV-BOX) and therefore the mic is automatically muted unless the Google Voice Assistant button is pressed. This may be different in the future with new software updates. Google Voice Assistant is always listening when streaming music over Wi-Fi or Bluetooth.
Answered by: Peter EMEA
Date published: 2019-02-27

Hi What kind of Dolby Digital 5.1 does it support? DD, DD+, DDAtmos or .....????

Asked by: jsturess2
At the time, the Citation Bar and Adapt, via HDMI, support: &bull; PCM (stereo and multi-channel) &bull; Dolby Digital 2.0 up to 5.1
Answered by: Mario at Customer Service
Date published: 2019-01-25

At night, I listen to Roku / Private Mode - The citation sound bar keep shutting itself off after 10-15 mins of inactivity due to power save function- is there any possible way to turn off the power save function at all??

Asked by: Citationbarowner
Thank you for contacting us. It is not possible to disable the power save function on your Citation Bar. If you need further assistance, please submit a case request at &nbsp;https://www.harmanaudio.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
Answered by: Thilo
Date published: 2019-01-17
